Example project · Displays
4-digit counter (7-segment)
The classic 12-pin 4-digit seven-segment module, wired the honest way: eight shared segment lines through 220 Ω resistors, four digit commons straight to GPIOs. The Uno multiplexes — one digit lit at a time for 2 ms, faster than your eye — to count 0000–9999. Watch the commons on the scope to see the strobing the display hides. The Code tab holds the same logic as an editable Arduino sketch.
What's on the bench
- 7× Resistor
- 7-Segment (4 digits)
- Arduino Uno
- Battery

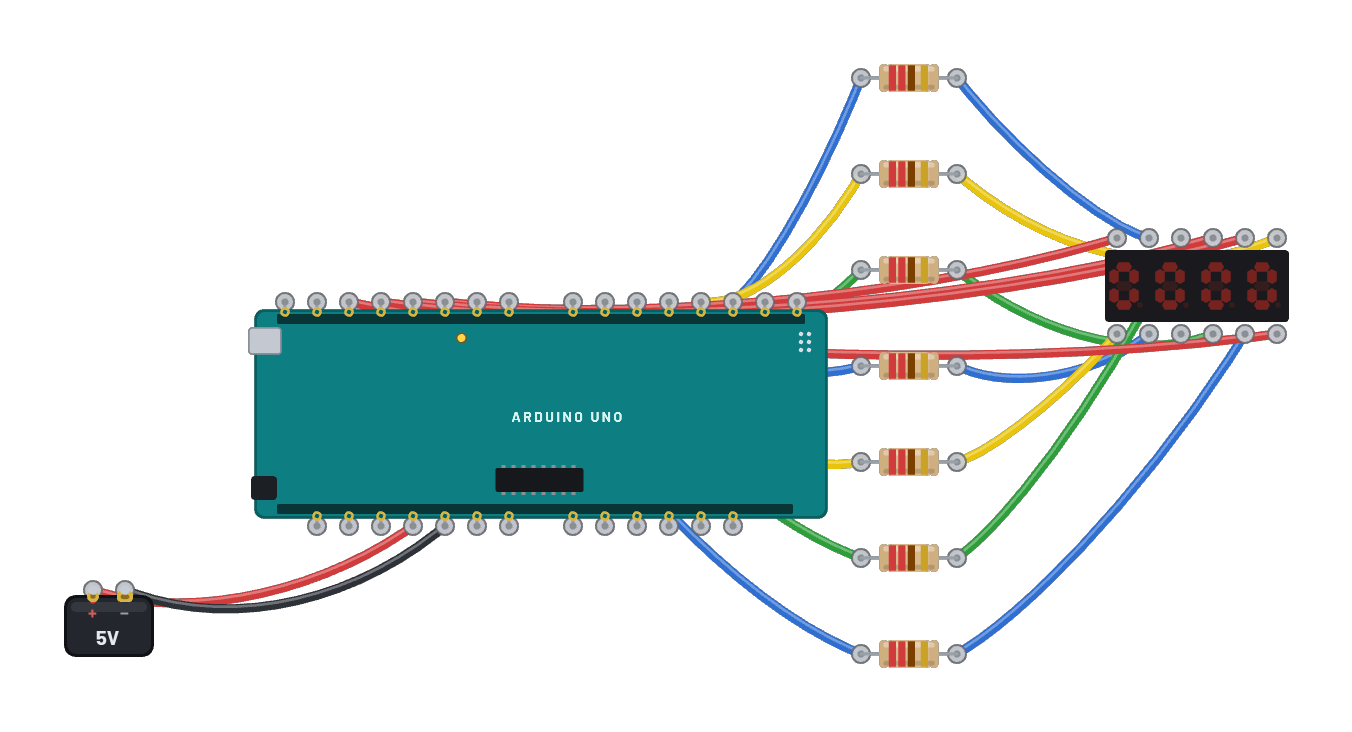

How it's wired
- Battery · pos→Arduino Uno · 5v
- Battery · neg→Arduino Uno · gnd
- Arduino Uno · d2→Resistor · a
- Resistor · b→7-Segment (4 digits) · a
- Arduino Uno · d3→Resistor · a
- Resistor · b→7-Segment (4 digits) · b
- Arduino Uno · d4→Resistor · a
- Resistor · b→7-Segment (4 digits) · c
- Arduino Uno · d5→Resistor · a
- Resistor · b→7-Segment (4 digits) · d
- Arduino Uno · d6→Resistor · a
- Resistor · b→7-Segment (4 digits) · e
- Arduino Uno · d7→Resistor · a
- Resistor · b→7-Segment (4 digits) · f
- Arduino Uno · d8→Resistor · a
- Resistor · b→7-Segment (4 digits) · g
…and 4 more connections — open it in the simulator to see every wire.
The code
This Arduino C++ sketch lives in the Code tab; sign in and press Compile & upload to build real firmware for the emulated board.
// 4-digit 7-segment multiplex counter. The 8 segment lines are SHARED // by all four digits; each digit has its own common-cathode pin. Only // one common may be LOW at a time — light the digits in turn faster // than the eye can see (persistence of vision). const uint8_t SEG_PINS[7] = {2, 3, 4, 5, 6, 7, 8}; // a b c d e f g const uint8_t DIG_PINS[4] = {10, 11, 12, 13}; // dig1..dig4, active LOW const uint8_t FONT[10] = { // bit0 = a .. bit6 = g 0b0111111, 0b0000110, 0b1011011, 0b1001111, 0b1100110, 0b1101101, 0b1111101, 0b0000111, 0b1111111, 0b1101111, }; unsigned int count = 0; unsigned long last = 0; void showDigit(uint8_t value, uint8_t digit) { for (uint8_t s = 0; s < 7; s++) digitalWrite(SEG_PINS[s], (FONT[value] >> s) & 1); digitalWrite(DIG_PINS[digit], LOW); // only this digit's common low delay(2); // ~125 Hz full-display refresh digitalWrite(DIG_PINS[digit], HIGH); } void setup() { for (uint8_t s = 0; s < 7; s++) pinMode(SEG_PINS[s], OUTPUT); for (uint8_t d = 0; d < 4; d++) { pinMode(DIG_PINS[d], OUTPUT); digitalWrite(DIG_PINS[d], HIGH); // all digits off } } void loop() { showDigit(count / 1000 % 10, 0); showDigit(count / 100 % 10, 1); showDigit(count / 10 % 10, 2); showDigit(count % 10, 3); if (millis() - last >= 250) { last += 250; count = (count + 1) % 10000; } }
