ESP32-H2 blink
A real emulated ESP32-H2 (single RISC-V RV32IMAC at 96 MHz, 320 KB SRAM) runs the bundled chip-specific firmware and blinks its onboard G8 RGB pixel. H2 has Bluetooth LE and 802.15.4 for Thread/Zigbee, but deliberately no Wi-Fi or MicroPython target.
What's on the bench
- Battery
- ESP32-H2 DevKitM-1

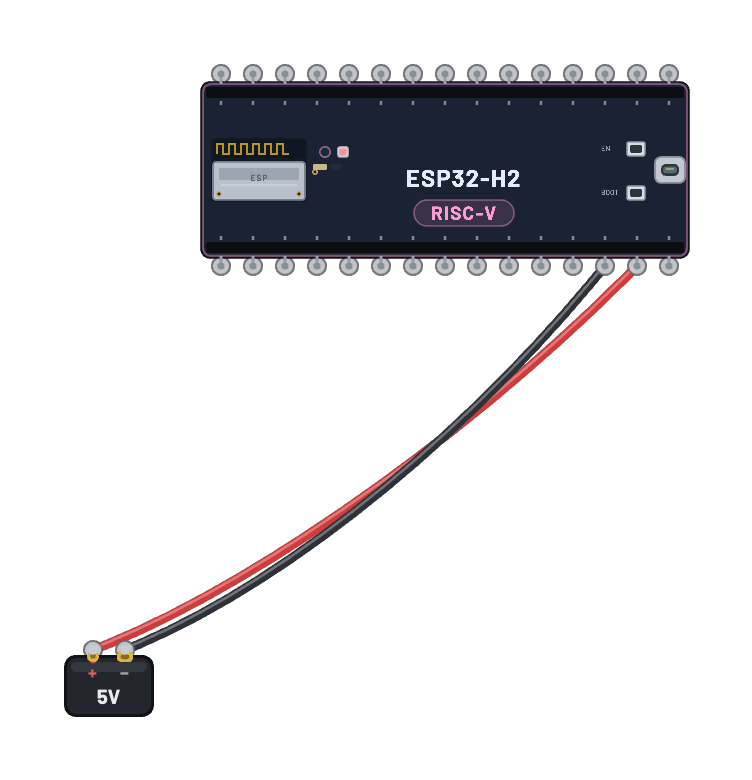

How it's wired
- Battery · pos→ESP32-H2 DevKitM-1 · 5v
- Battery · neg→ESP32-H2 DevKitM-1 · gnd
This project runs prebuilt firmware on the emulated board; open it in the simulator to watch it work and inspect every part live.
